Visual Slope
| Seepage Analysis |
 |  |  |  |  |
A Geotechnical Design Resource

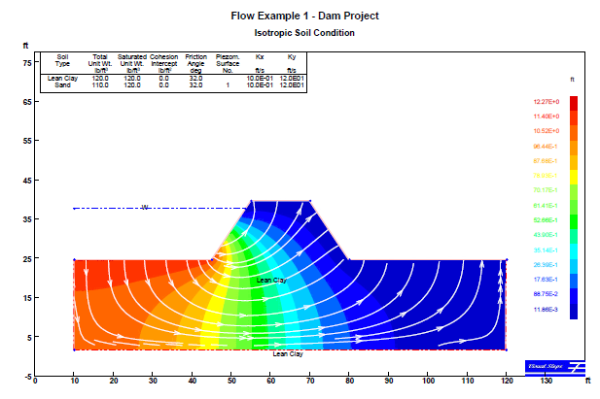

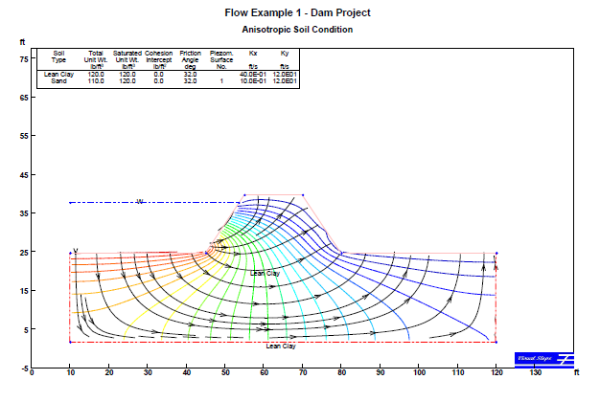

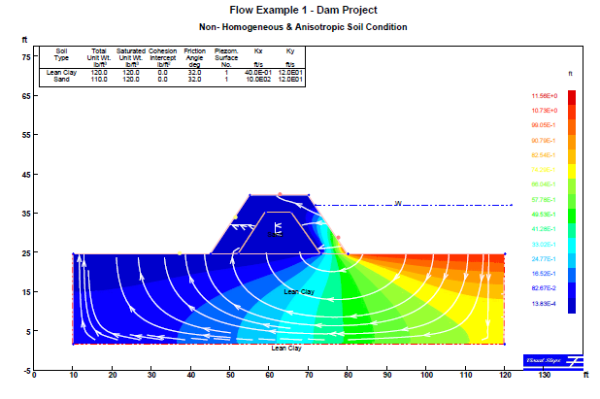

The Visual Slope seepage analysis module is capable performing static seepage analysis for a profile with isotropic,

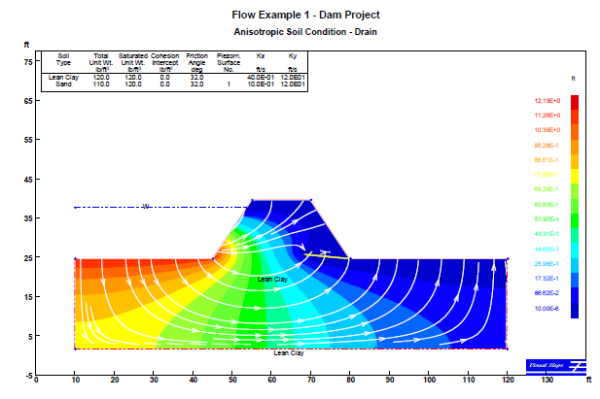

anisotropic, homogeneous or non-homogeneous soils. Drain and artesian aquifer can also be simulated. The results of a
calculation including equipotential lines, equipotential shading and flow lines (a vector field), can be presented. The user can
also obtain a flow rate by using the cutting cross-section feature.
